Description
35mm BGA Roundpin Heatsink, Aluminum, 7.6mm Tall
| Part | Type | Material | Width (mm) | Length (mm) | Height (mm) | Theta SA @200LFM | Theta SA @400LFM | Theta SA @600LFM |
|---|---|---|---|---|---|---|---|---|
| HS2089DB | BGA | Aluminum | 35 | 35 | 7.6 | 6.1 | 4 | 3.2 |

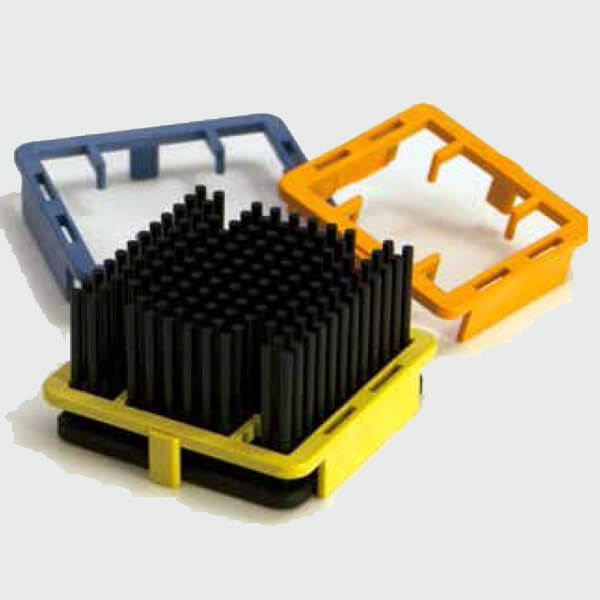

The HS Series of aluminum round pin BGA Heatsinks are ideal for omni-directional air flow and convection environments. This Clipon Heatsink is designed for BGA chipsets and mounts with a EZ Snap™ clip that requires no special board modifications.

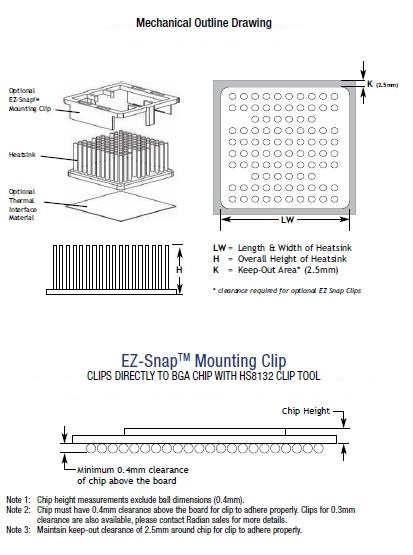

Use clip tool HS8132 to attach or remove heatsink assembly directly to BGA chip
