Description

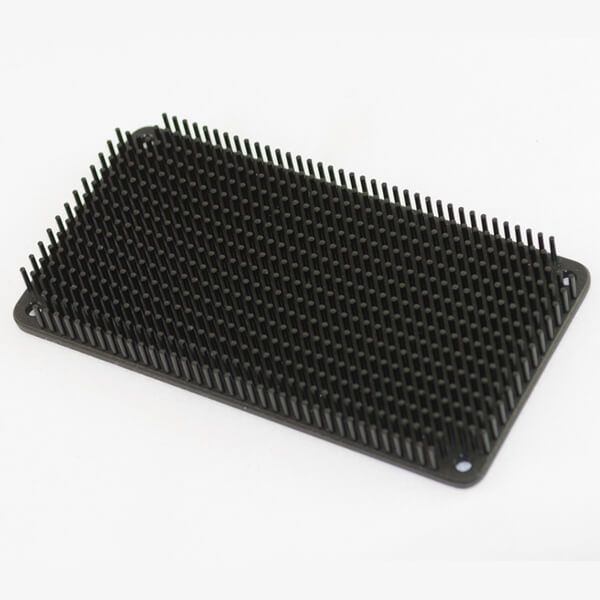

Quarter Brick DC/DC Heatsink, 58 X 37 X 23mm, Roundpin
| Part | Type | Material | Width (mm) | Length (mm) | Height (mm) | Theta SA @200LFM | Theta SA @400LFM | Theta SA @600LFM |
|---|---|---|---|---|---|---|---|---|
| HS2159DB | Quarter Brick Round Pin |
Aluminum | 36.8 | 57.9 | 22.9 | 1.4 | 1 | 0.8 |
Radian’s Roundpin heatsink designs are constructed of die cast aluminum and are ideal for omni directional airflow or convection environments. These heatsink solutions are easy to install with four M3 mounting screws ranging from 4-8mm in length.
Request drawing or more information
Please complete the form below and we will send a drawing. For different thermal situations, or if you have any additional questions please include in “additional information”
