Description

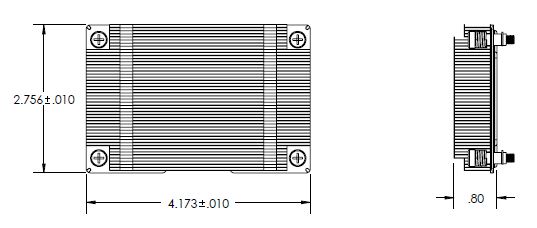

Vapor Chamber Heatsink
| Part | Type | Material | Finish | Width (mm) | Length (mm) | Height (mm) | Theta SA at 200LFM | Theta SA at 400LFM | Theta SA at 600LFM |
|---|---|---|---|---|---|---|---|---|---|
| VCH1113 | Vapor Chamber | Copper/Copper Fins | Nickel Plated | 70 | 106 | 20.3 | 0.56 | 0.3 | 0.23 |
If this model is out of stock, typical delivery times are 7 weeks.
A Vapor chamber is combined with stamped fins to create a high-end thermal management device that can rapidly spread heat from a small source to a large area. Because of the complexity of vapor chambers, and other factors such as source size, and chip height, the thermal performance of a vapor chamber heatsink must be evaluated through thermal simulation, or actual testing.
Request drawing or more information
Please complete the form below and we will send a drawing. For different thermal situations, or if you have any additional questions please include in “additional information”
Additional Information
| Weight | 1 lbs |
|---|---|
| Dimensions | 106 × 70 × 20.3 cm |
| Material | |
| Height (mm) | |
| Mounting? | |
| Thermal Interface? |
